Risers
Wet riser or dry riser: which one is in your building?
A dry riser is an empty pipe charged by the fire brigade on arrival. A wet riser is permanently full of water, kept at pressure by its own pump set, and is used in taller buildings where the brigade cannot pump high enough from the ground.
The difference in one line
A dry riser is empty until the fire service fills it. A wet riser is already full.
Everything else follows from that.
Dry risers
An empty vertical main with a brigade inlet at ground level and landing valves on each floor. When the fire service arrives they connect a pump to the inlet and charge the pipe.
The maintenance question for a dry riser is simple: will it hold pressure, and can the brigade get to it. That is why the routine is a six-monthly visual inspection and an annual pressure test at 12 bar for 15 minutes.
Wet risers
A vertical main permanently charged with water and held at pressure by a dedicated pump set, usually fed from a stored water supply rather than straight off the town main.
A wet riser is used where a fire appliance pumping from the ground cannot be relied on to reach the top floors. In practice that means tall buildings, and in the UK the rough threshold is around 50 metres, above which a wet riser is expected rather than a dry one.
Why the wet one is a bigger commitment
People treat these as two versions of the same thing. They are not, and the difference is not the water. It is the pump.
A dry riser has no moving parts that need to run. A wet riser has:
- A water supply and usually a stored tank, which needs level and condition checks
- A pump set, electric or diesel, which needs to start and needs to perform under flow
- Pressure maintenance, so the main stays charged without the main pump cycling constantly
- The same pipework, valves and inlets as a dry riser, with the same six-monthly and annual routine
That is why wet risers, their pumps and their tanks are tested together. Testing them separately proves very little, because they only work together.
How to tell them apart in ninety seconds
You do not need drawings. Three things separate them and all three are visible.
Look at the inlet. A dry riser has a breeching inlet in a box on an external wall, with two or four instantaneous couplings and caps. A wet riser has no inlet of that kind at ground level, because it is not charged by the brigade. It may have a smaller emergency replenishment inlet, which is a different thing and is usually labelled as such.
Look for a pump. A wet riser is fed by a pump set and a stored water tank, normally in a plant room or a basement. A dry riser has neither. If there is no pump anywhere in the building, it is not a wet riser.

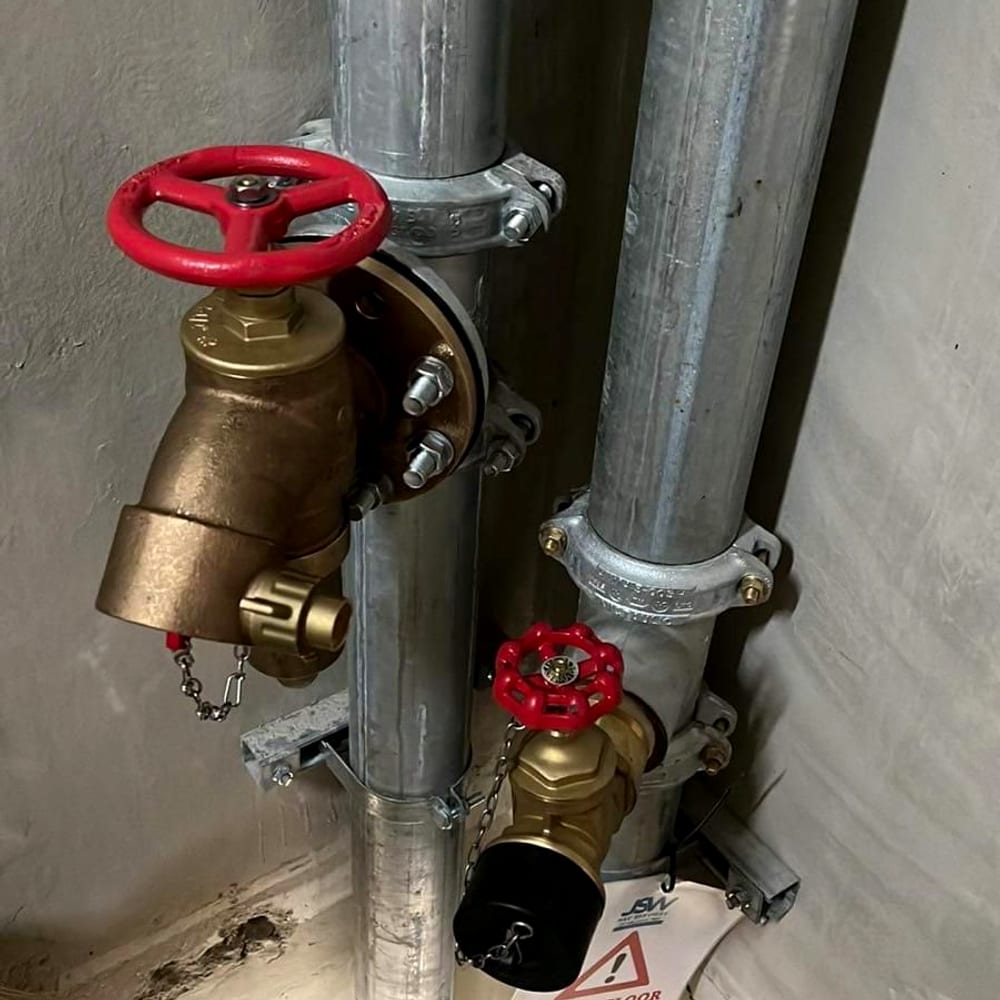

Look at the landing valve. Both have them, but the cabinet on a wet riser is often larger and may carry a hose reel or additional equipment, and the pipework into it is under pressure. A gauge anywhere on the riser is a strong sign it is wet.
If those three disagree with each other, that is worth a phone call rather than a guess: mixed systems exist in buildings that have been extended, and a building with both a dry riser in the original block and a wet riser in the new one is not unusual.
What each costs you in maintenance terms
Not figures, but the shape of the commitment, which is what actually decides the budget line.
A dry riser is a six-monthly visual and an annual pressure test, and that is the whole regime. It is one of the cheapest recurring obligations a building has. Nothing runs, nothing consumes power, nothing needs fuel.
A wet riser carries all of that plus everything that comes with a pump and a stored supply: pump testing under flow, tank inspection and cleaning, water quality, power supply, and on a diesel set fuel and batteries. It is a plant room with an annual regime rather than a pipe with a test.
That difference is why the height threshold matters commercially as well as technically. Crossing 50 metres does not just change the pipe. It adds a plant room to the building’s maintenance schedule for the rest of its life. The detail of what that costs is in what drives the cost of servicing.
The failure nobody plans for
A pump that starts is not a pump that works.
The common shortcut on a wet riser or a sprinkler pump is to press the start button, hear it run, and sign the sheet. That proves the starter and the battery. It does not prove the pump will deliver its rated flow at its rated pressure when a landing valve two hundred feet up is opened.
Proving that needs the pump run under flow against a known duty. It is the single most skipped test in this trade, and it is the one that decides whether the riser is a firefighting main or a decorative pipe.
What the fire service finds on arrival
The difference matters most in the first four minutes, which is the whole argument for the height threshold.
At a dry riser the crew has to find the inlet, connect a pumping appliance to it, and charge the main before anybody upstairs gets water. That is fine, and it is why the inlet’s location, its access and the condition of its couplings are checked every six months rather than annually. A missing cap or a planter built over the hard standing turns a routine connection into a delay at the one moment nobody has any.
At a wet riser the main is already charged and pressurised by the building’s own pump set. The crew connects at the landing valve and has water. Nothing has to be done at ground level, which is exactly why it is required above 50 metres, where a pumping appliance can no longer develop enough pressure to reach the top.
That is the entire trade: a dry riser puts the work at the start of the incident and none of it on the building’s maintenance schedule, and a wet riser does the reverse.
Whichever you have, the testing is ours: dry riser testing and wet riser servicing. What BS 9990 requires of each is in dry riser testing explained.
If you are not sure which you have
Look for the pump. Pipework, valves and a brigade inlet with no pump means dry. A plant room with a dedicated pump set, a tank and a pressure gauge that never reads zero means wet.
This work, on our sites
Questions we get asked
How do I tell which one my building has?
Look at the inlet at ground level and the plant room. A dry riser has a brigade inlet and nothing else. A wet riser has a water supply, a tank and a pump set that keeps the main permanently charged. If there is a pump dedicated to the riser, it is wet.
Why do taller buildings need a wet riser?
Because a fire appliance pumping from ground level cannot reliably deliver pressure to the top of a tall building. Above roughly 50 metres a permanently charged main with its own pump takes over that job.
Is a wet riser more expensive to maintain?
Yes, and the reason is the pump. A dry riser is pipework and valves. A wet riser is pipework, valves, a water supply, a tank and a pump set, and every one of those has its own routine.
Do both need the same annual pressure test?
Both are covered by BS 9990 and both get a six-monthly visual inspection and an annual test. The wet riser test also has to prove the pump performs, not just that the pipe holds.
Where this comes from
- BS 9990Non-automatic fire-fighting systems in buildings. Code of practice
Dry and wet risers, and private fire mains. The source of the six-monthly inspection and the annual pressure test.
BSI
British Standards are copyright documents and most are bought rather than read free. We hold the ones we work to. If you need to know what one of them says about your building, ask us rather than buying it.
